Room air control

RLS PP-K1

Article number: 0157.0193
Manufacturer: MAICO
Room air control for PushPull 60 KA and PushPull 60 KL, option for connecting up to 6 PP 60 K units, 5... more information

Product data sheet

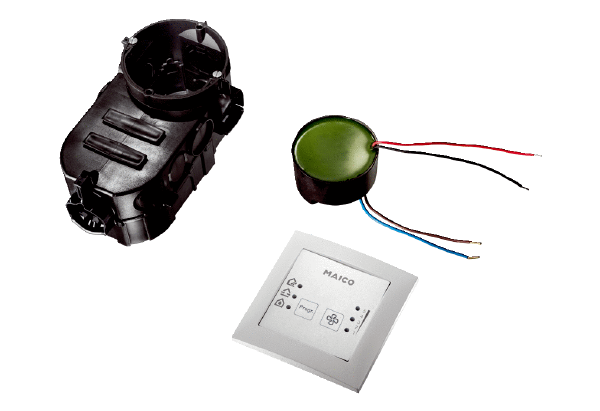

RLS PP-K1 IM0015061.PNG Room air control for PushPull 60 KA and PushPull 60 KL, option for connecting up to 6 PP 60 K units, 5 ventilation levels can be set, programmes: heat recovery, cross-ventilation and dehumidification. No "Off" system level.
Back
RLS PP-K
RLS PP-K1
RLS 2 F
HB WS 75
MP RLS WS 75
DS MDR-PG AVC
DZS MDR-VG AVC
IST MDR

Characteristic curve

Dimensioned drawing

Technical data

RLS PP-K1 - Technical data

Article RLS PP-K1
Type of voltage Alternating current
Rated voltage 230 V
Degree of protection IP X0
Mains cable 3 x 1,5 mm²
Installation site Wall
Type of installation Recessed-mounted
Installation position vertical
Weight 0,27 kg
Weight including packaging 0,45 kg
Width 80 mm
Height 150 mm
Depth 65 mm
Width with packaging 200 mm
Height with packaging 165 mm
Depth with packaging 143 mm
Packing unit 1 piece
Range K
GTIN (EAN) 4012799571933
Article number 0157.0193

Accessories of

RLS PP-K1 - Accessories of

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Final assembly kit PP 60 K-SE No longer available for delivery 0095.0204 on request
  • On the notes
Shell kit PP 60 KA-SR No longer available for delivery 0095.0205 on request
  • On the notes
Shell kit PP 60 KA-SRW No longer available for delivery 0095.0215 on request
  • On the notes
Shell kit PP 60 KA-SRL No longer available for delivery 0095.0216 on request
  • On the notes
Shell kit PP 60 KL-SR No longer available for delivery 0095.0206 on request
  • On the notes

Product description

Productdescription

RLS PP-K1

short description

Room air control for PushPull 60 KA and PushPull 60 KL, option for connecting up to 6 PP 60 K units, 5 ventilation levels can be set, programmes: heat recovery, cross-ventilation and dehumidification. No "Off" system level.

Product description

  • The room air control is needed as an accessory for PushPull 60 KA and PushPull 60 KL.
  • Room air control RLS PP-K1 features the following setting options:
    • Continuous ventilation (with heat recovery), cross-ventilation and dehumidification operating modes.
    • 5 ventilation levels between 17 and 55 m³/h.
    • No "Off" system level.
  • Up to 6 units can be controlled at the same time through an RLS PP-K room air control.

Table of contents

Wiring diagram

RLS PP-K1 - Wiring diagram

Connection for PushPull 60 K ventilation units to RLS PP-K room air control

P - PushPull Fan

F - Fan

Kl - Shutter

St - Connector

NT - Mains adapter

SV - Power Supply
