Diagonal fan

ERK 100 T

Remaining parts
Article number: 0080.0174
Manufacturer: MAICO
Diagonal fan, for duct installation, DN 100, one-level with overrun relay, adjustable from 3 to 15 minutes
Application examples: Production site, Storage facility, Day room, Showroom, Workshop
Product data sheet
ERK 100 T IM0015670.PNG Diagonal fan, for duct installation, DN 100, one-level with overrun relay, adjustable from 3 to 15 minutes
Back
ERK 100 T
ERK 100 S
ERK 100 ST
ERK 125
ERK 125 T
ERK 150
ERK 160
ERK 200

Characteristic curve

ERK 100 T - Characteristic curve

Dimensioned drawing

ERK 100 T - Dimensioned drawing [mm]

Technical data

ERK 100 T - Technical data

Article ERK 100 T
Model Model with follow-up relay
Air flow volume 130 m³/h
Rotating speed 2.200 1/min
Impeller type diagonal
Speed controllable −
Reversing capacity −
Rated voltage 230 V
Frequency 50 Hz
Nominal output 25 W
Imax 0,16 A
Degree of protection IP 44
Insulation class B
Installation position vertical / horizontal
Material PP plastic
Housing material Polypropylene
Colour white-grey
Weight 1,08 kg
Weight including packaging 1,3 kg
Nominal size 100 mm
Width 171 mm
Height 196 mm
Depth 238 mm
Width with packaging 193 mm
Height with packaging 208 mm
Depth with packaging 245 mm
Airstream temperature 40 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799801740
Article number 0080.0174



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, high (dB(A))

–

40

43

42

40

36

34

26

45

LWA5= free inlet sound power level in dB.

Accessories

ERK 100 T - Accessories

General accessories

Product type Name Art. No. Price*(EUR) Action
Automatic backflow preventer AVM 10 0093.0002 on request
  • On the notes
Protective grille SGR 10 0150.0123 on request
  • On the notes
Electrical air heater ERH 10-04 0082.0100 on request
  • On the notes
Water air heater WRH 10-1 0082.0116 on request
  • On the notes
Air filter TFE 10-4 0149.0074 on request
  • On the notes
Air filter TFE 10-7 0149.0049 on request
  • On the notes
Cellar dehumidification control AKE 0157.0129 on request
  • On the notes
Cellar dehumidification control AKE/1 New development 0157.1683 on request
  • On the notes
Shutter drive with air damper MS 100 No longer available for delivery 0157.1231 on request
  • On the notes
Shutter drive with air damper MS 100 S No longer available for delivery 0157.1235 on request
  • On the notes
Air filter TFE 10-5 No longer available for delivery 0149.0058 on request
  • On the notes

Product description

Productdescription

ERK 100 T

short description

Diagonal fan, for duct installation, DN 100, one-level with overrun relay, adjustable from 3 to 15 minutes

Product description

Model with follow-up relay

  • Adjustable from 3 to 15 minutes.

Features

  • Duct fan, made of polypropylene.
  • Connection sockets on the outlet and inlet sides correspond to a folded spiral-seams duct diameter.
  • For direct installation between ducts.
  • Easy inspection and maintenance by simply opening the clamp and removing the fan.
  • Diagonal impeller with downstream stator (exception: ERK 100, axial impeller).

Motor

  • Asynchronous motor, 1, 2 or 3 levels, depending on model.
  • IP 44 degree of protection.
  • Robust motor with ball bearings, maintenance-free.
  • Speed control using phase control or transformer possible (exception: Version T and ST).
  • There can be a physically induced humming noise, through the use of phase angle technology. 5-step transformers are therefore used for speed control in rooms requiring quiet fan operations.
  • Thermal overload protection as a standard feature.

Electrical connection

  • Externally fitted terminal box with cable entry grommet.

Safety instructions

  • The fan may be operated only if the protection against accidental contact is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet and outlet. To do this, fit a SGR protective grille.

Table of contents

Wiring diagram

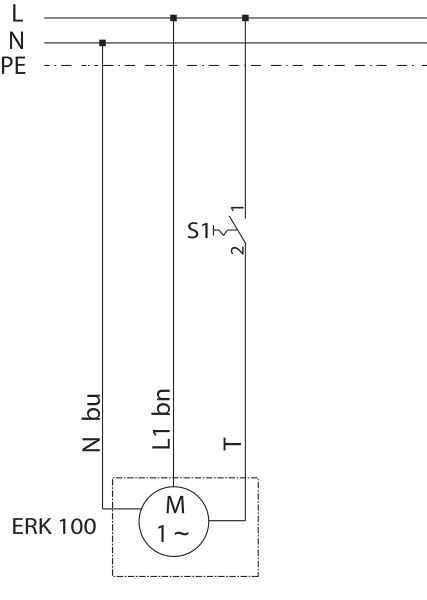

ERK 100 T - Wiring diagram

S1 - On/off switch

T - Timer



Predecessor - successor
