Axial window fan

EVH 31

No longer available for delivery
Article number: 0080.0822
Manufacturer: MAICO
Axial window fan with 1m long pull-cord for manual operation
Application examples: Office, Office, Commercial premises, Restaurant, Production facility
Product data sheet
EVH 31 IM0009901.PNG Axial window fan with 1m long pull-cord for manual operation

Characteristic curve

Dimensioned drawing

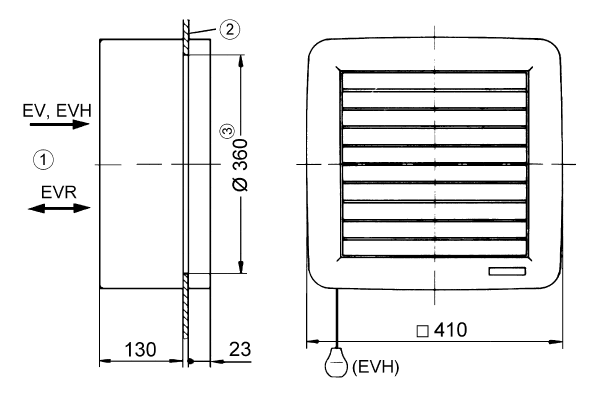

EVH 31 - Dimensioned drawing [mm]

  1. Inside
  2. Window pane
  3. Window cut-out: 360 mm diameter

Technical data

EVH 31 - Technical data

Article EVH 31
Air flow volume 1.400 m³/h
Rotating speed 1.425 1/min
Impeller type axial
Air direction Air extraction
Speed controllable
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz
Nominal output 110 W
Power consumption 110 W
Inom 0,6 A
Imax 0,6 A
Degree of protection IP 20
Mains cable 3 x 1,5 mm²
Installation site Window
Material Synthetic material
Colour Traffic white, similar to RAL 9016
Weight 6,71 kg
Weight including packaging 7,78 kg
Type of shutter Airstream-operated opening/closing
Nominal size 315 mm
Width 410 mm
Height 410 mm
Depth 153 mm
Width with packaging 430 mm
Height with packaging 450 mm
Depth with packaging 185 mm
Airstream temperature at IMax 40 °C
Sound pressure level 61 dB(A)
Packing unit 1 piece
Range C
GTIN (EAN) 4012799808220
Article number 0080.0822



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA7, high (dB(A))

72

LWA7= housing and free inlet sound power level in dB.

Accessories

EVH 31 - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Accessories for composite window ZD 31 No longer available for delivery 0093.0916 on request
  • On the notes
Accessories for glass brick walls ZG 31 No longer available for delivery 0093.0158 on request
  • On the notes

General accessories

Product type Name Art. No. Price*(EUR) Action
Cellar dehumidification control AKE 0157.0129 on request
  • On the notes
Cellar dehumidification control AKE/1 New development 0157.1683 on request
  • On the notes

Product description

Productdescription

EVH 31

short description

Axial window fan with 1m long pull-cord for manual operation

Product description

Features

  • For installation in windows or thin walls.
  • Depth of outer part is only 23 mm. Therefore no conflict with shutters or blinds.
  • Quiet synthetic impeller.
  • Maintenance-free fan.
  • IP 20 degree of protection, not suited for damp rooms.

Motor

  • Thermal overload protection as a standard feature. Switches the motor off in the event of thermal overload and switches it on again automatically once it has cooled down.
  • Robust ball-bearing motor, maintenance-free.
  • Suitable for continuous operation.
  • Speed-controllable, exception: EVH 31.

Mounting instructions

  • Easy installation. Mounting with included screws.
  • Also suited for thicker panes or walls. Appropriate mounting material must be provided by the customer.
  • Pane thickness:
    • EV 31 = 4-20 mm
    • EVR 31 = 4-20 mm
    • EVH 31 = 6-20 mm

Electrical connection

  • To terminal block in the housing.

Safety instructions

  • Inside and outside protection against accidental contact in accordance with DIN EN ISO 13857.

Table of contents

Wiring diagram

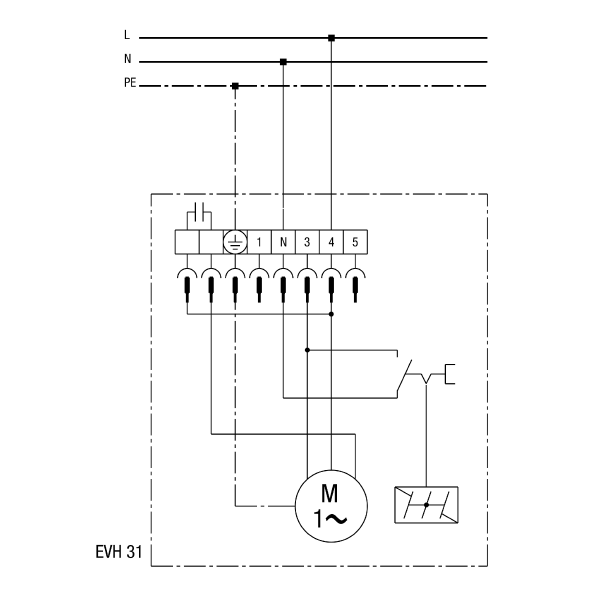

EVH 31 - Wiring diagram

EVH 31


Predecessor - successor

Notes
Inquiry
Product comparison
