Fan insert

ER EC RF17

Article number: 0093.0614
Manufacturer: MAICO
ER EC RF17 fan insert for UP-/UPD-/UPB 17 flush-mounted housing, air volume of 30 m³/h / 60 m³/h
Application examples: Fan insert for ER 17 housing, Bathroom, Kitchen, Multiple family unit, Day room
Product data sheet

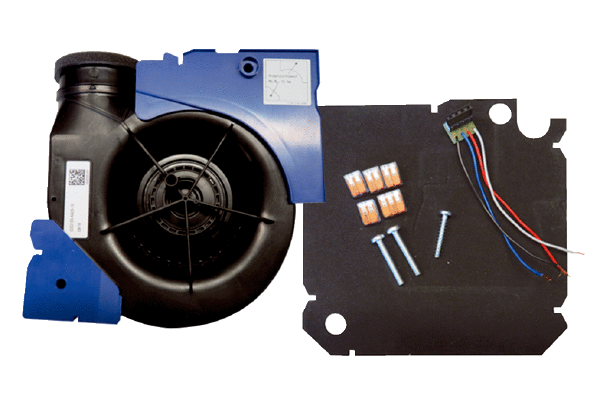

ER EC RF17 IM0019484.PNG ER EC RF17 fan insert for UP-/UPD-/UPB 17 flush-mounted housing, air volume of 30 m³/h / 60 m³/h
Back
ER EC
ER EC RF17

Characteristic curve

ER EC RF17 - Characteristic curve ER EC and ER EC RF17 with ER GH exhaust opening at side

I – level 1

II – level 2

  1. Factory settings for base and nominal load level in conjunction with ER-A cover
  2. Alternative settings for base and nominal load levels in conjunction with ER-AK/..-AH/..-AB covers

Dimensioned drawing

Technical data

ER EC RF17 - Technical data

Article ER EC RF17
Air flow volume 20 m³/h / 30 m³/h / 40 m³/h / 60 m³/h / 100 m³/h / Levels can be set in a variable manner depending on cover variant. ER-A: Level 1 = 30 m³/h, level 2 = 60 m³/h. ER-AK/ER-AB: Level 1 and level 2 = 20/30/40/60/100 m³/h can be set. ER-AH: Level 1 = 20/30/40 m³/h, level 2 = 60/100 m³/h can be set.
Rotating speed 500 1/min / 800 1/min / 1.050 1/min / 1.250 1/min / 1.800 1/min
Air direction Air extraction
Speed controllable −
Reversing capacity −
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz
Power consumption 2 W / 2,5 W / 3 W / 5 W / 17 W
Degree of protection IP X5
Mains cable 3/5 x 1.5 mm²
Installation site Wall / Ceiling
Type of installation Recessed-mounted
System type Decentralised
Housing material Polypropylene (PP)
Colour Black
Weight 0,76 kg
Weight including packaging 1,05 kg
Filter class ISO Coarse 30 % (G2)
Air outlet direction at side
Width 225 mm
Height 87 mm
Depth 215 mm
Width with packaging 280 mm
Height with packaging 155 mm
Depth with packaging 280 mm
Airstream temperature at IMax 40 °C
Sound pressure level 26 dB(A) / 36 dB(A)
Approval number Z-51.1-478
Packing unit 1 piece
Range B
GTIN (EAN) 4012799936145
Article number 0093.0614

Accessories

ER EC RF17 - Accessories

Specific accessories

Product type Name Art. No. Price*(EUR) Action
Cover ER-A 0084.0361 on request
  • On the notes
Cover ER-AK 0084.0362 on request
  • On the notes
Cover ER-AH 0084.0363 on request
  • On the notes
Cover ER-AB 0084.0364 on request
  • On the notes
Masking frame ER-AR EC 0093.0276 on request
  • On the notes

General accessories

Product type Name Art. No. Price*(EUR) Action
Roof outlet DF - - -
Roofing tile DP - - -
Mounting clamp BS - - -
Rain protection grille RG - - -
Roofing tile DP - - -
Outside air opening ALD 10 0152.0054 on request
  • On the notes
Outside air opening ALD 125 Discontinued product 0152.0067 on request
  • On the notes
Outside air opening ALD 125 VA Discontinued product 0152.0068 on request
  • On the notes
Outside air opening ALD 160 Discontinued product 0152.0069 on request
  • On the notes
Outside air opening ALD 160 VA Discontinued product 0152.0070 on request
  • On the notes
Door ventilation grille MLK 30 white 0151.0123 on request
  • On the notes
Door ventilation grille MLK 45 white 0151.0126 on request
  • On the notes
Cellar dehumidification control AKE 0157.0129 on request
  • On the notes
Cellar dehumidification control AKE/1 New development 0157.1683 on request
  • On the notes

Spare part for

Product type Name Art. No. Price*(EUR) Action
Fan insert ER 17 No longer available for delivery 0080.0235 on request
  • On the notes
Fan insert ER 17 VZ No longer available for delivery 0080.0236 on request
  • On the notes
Fan insert ER 17 G No longer available for delivery 0080.0238 on request
  • On the notes
Fan insert ER 17 F No longer available for delivery 0080.0237 on request
  • On the notes
Fan insert ER 17/60 No longer available for delivery 0080.0735 on request
  • On the notes
Fan insert ER 17/60 VZ No longer available for delivery 0080.0736 on request
  • On the notes
Fan insert ER 17/60 G No longer available for delivery 0080.0738 on request
  • On the notes
Fan insert ER 17/60 F No longer available for delivery 0080.0737 on request
  • On the notes
Fan insert ER 17/100 No longer available for delivery 0080.0739 on request
  • On the notes
Fan insert ER 17/100 VZ No longer available for delivery 0080.0740 on request
  • On the notes
Fan insert ER 17/100 F No longer available for delivery 0080.0741 on request
  • On the notes
Fan insert ER 17/100 H No longer available for delivery 0080.0744 on request
  • On the notes
Fan insert ER 17/100 G No longer available for delivery 0080.0742 on request
  • On the notes
Fan insert ER 17/60-1 No longer available for delivery 0080.0780 on request
  • On the notes
Fan insert ER 17/60-1 VZ No longer available for delivery 0080.0781 on request
  • On the notes
Fan insert ER 17/60-2 No longer available for delivery 0080.0782 on request
  • On the notes
Fan insert ER 17/60-2 VZ No longer available for delivery 0080.0783 on request
  • On the notes
Fan insert ER 17/60-2 F No longer available for delivery 0080.0784 on request
  • On the notes
Fan insert ER 17/60-2 H No longer available for delivery 0080.0785 on request
  • On the notes
Fan insert ER 17/60-2 G No longer available for delivery 0080.0786 on request
  • On the notes

Product description

Productdescription

ER EC RF17

short description

ER EC RF17 fan insert for UP-/UPD-/UPB 17 flush-mounted housing, air volume of 30 m³/h / 60 m³/h

Product description

Special features

  • Fan insert kit for use in ER 17 flush-mounted housings.
  • Replacement of old ER 17 fan inserts with energy-saving ER EC RF17.
  • Reduced power consumption by up to 90 % compared to the ER 17.
  • Improved sound power compared to the ER 17.
  • Contemporary design with new covers ER-A/ER-AK/ER-AH/ER-AB.
  • Extension of the control options through combination with ER-A/ER-AK/ER-AH/ER-AB covers.
  • No costly replacement work necessary.

Features

  • 2-level fan for installing in UP-/UPD-/UPB 17 flush-mounted housing.
  • Air volume 30 m³/h / 60 m³/h in conjunction with the ER-A standard cover.
  • When using the covers (ER-AK, ER-AH, ER-AB), 20 / 30 / 40 / 60 / 100 m³/h also possible.
  • Start delay 60 s and overrun time 15 min. in conjunction with ER-A standard cover.
  • When using the covers (ER-AK, ER-AH, ER-AB), start delay 0/30/60/90/120 s and overrun time 0/3/6/15/24/30 min. also possible.
  • For single-room air extraction using a single fan.
  • Adapter board with 5 pins for quick installation of the fan in the housing.
  • Provided installation accessories for the installation of the fan insert in the ER 17 housing.
  • ER EC RF17 has an IP X5 degree of protection and can thus be installed in area 1 in accordance with DIN VDE 0100-701, even with water jets. For details see planning instructions.
  • Protection class II.
  • The steep characteristic curve shows the high pressure capacity of the ER EC RF17 fan.
  • Robust energy-saving EC motor.
  • Motor with thermal overload protection.
  • Maintenance-free, with enclosed ball bearings on both sides.

Table of contents

Wiring diagram

ER EC RF17 - Wiring diagram

Nominal load can be switched without base load


Nominal load can be switched with permanent base load


Nominal load and base load can be switched


Nominal load switchable with 2 cable cores


Base load switchable with 2 cable cores


Predecessor - successor

ER EC RF17 - Predecessor

Product type Name Art. No. Action
Fan insert ER 17 No longer available for delivery 0080.0235
  • On the notes
Fan insert ER 17 VZ No longer available for delivery 0080.0236
  • On the notes
Fan insert ER 17 G No longer available for delivery 0080.0238
  • On the notes
Fan insert ER 17 F No longer available for delivery 0080.0237
  • On the notes
Fan insert ER 17/60 No longer available for delivery 0080.0735
  • On the notes
Fan insert ER 17/60 VZ No longer available for delivery 0080.0736
  • On the notes
Fan insert ER 17/60 G No longer available for delivery 0080.0738
  • On the notes
Fan insert ER 17/60 F No longer available for delivery 0080.0737
  • On the notes
Fan insert ER 17/100 No longer available for delivery 0080.0739
  • On the notes
Fan insert ER 17/100 VZ No longer available for delivery 0080.0740
  • On the notes
Fan insert ER 17/100 F No longer available for delivery 0080.0741
  • On the notes
Fan insert ER 17/100 H No longer available for delivery 0080.0744
  • On the notes
Fan insert ER 17/100 G No longer available for delivery 0080.0742
  • On the notes
Fan insert ER 17/60-1 No longer available for delivery 0080.0780
  • On the notes
Fan insert ER 17/60-1 VZ No longer available for delivery 0080.0781
  • On the notes
Fan insert ER 17/60-2 No longer available for delivery 0080.0782
  • On the notes
Fan insert ER 17/60-2 VZ No longer available for delivery 0080.0783
  • On the notes
Fan insert ER 17/60-2 F No longer available for delivery 0080.0784
  • On the notes
Fan insert ER 17/60-2 H No longer available for delivery 0080.0785
  • On the notes
Fan insert ER 17/60-2 G No longer available for delivery 0080.0786
  • On the notes
