Axial wall fan
EZQ 20/4 E
Manufacturer: MAICO
Axial wall fan with square wall plate, DN 200, single-phase AC
Application examples: Production facility, Commercial premises, Garage, Building container, Storage facility
Product data sheet

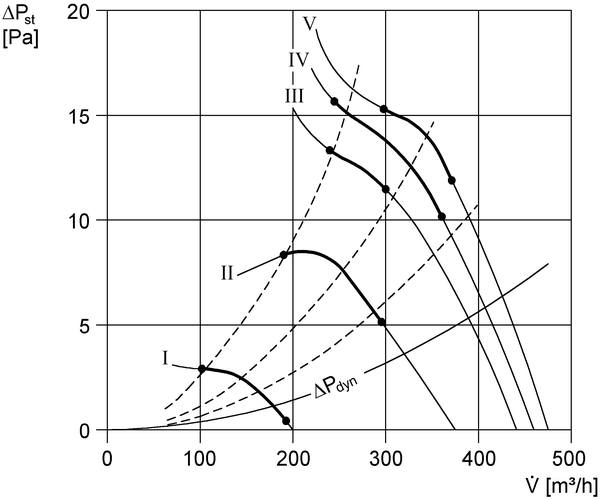

Characteristic curve
Dimensioned drawing

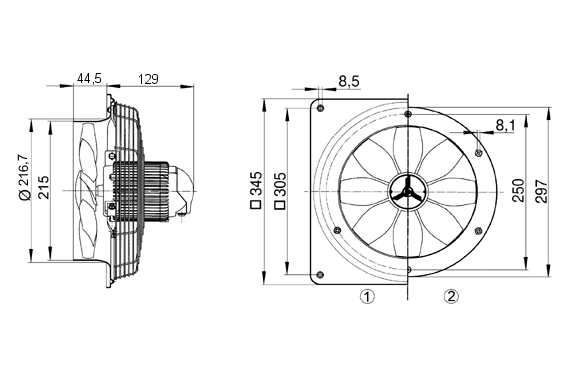

EZQ 20/4 E - Dimensioned drawing [mm]
- Steel wall plate = EZQ/DZQ model
- Steel wall ring = EZS/DZS model
EZQ 20/4 E - Dimensioned drawing [mm]
Technical data
EZQ 20/4 E - Technical data
Accessories
EZQ 20/4 E - Accessories
General accessories
Product description
Productdescription
EZQ 20/4 E
short description
Axial wall fan with square wall plate, DN 200, single-phase ACProduct description
AC model
- Axial wall fan with square wall plate, in single-phase AC version.
Brief description
- For surface mounting.
- Protective grille on the intake side, protection against accidental contact in accordance with DIN EN ISO 13857.
- 8-blade impellers made of glass fibre reinforced polyamide
- Thermal overload protection as a standard feature.
- Fans meet the requirements of the European Ecodesign Directive (EC) No.327/2011 Directive 2009/125/EC.
- Vibration-free running due to dynamically balanced impeller and motor (shaft-rotor), according to quality class 6.3, DIN ISO 1940, part 1.
- High efficiency on the ventilation side, low operating noise.
- Increased durability due to high-quality materials such as quiet ball bearings.
- Fans are maintenance-free.
- Installation for ventilation and air extraction possible in any position.
Air flow direction
- The air flow direction is marked.
- Standard exhaust air mode, air flow direction with air drawn across motor.
Motor
- Asynchronous motor.
- Speed controllable. Exception: types DZQ 40/2 B and DZS 40/2 B.
- Reversible. Exception: Fans with shaded-pole motors (...-E).
- Not suitable for ventilating steam-saturated air.
AC motor
- EZQ/EZS type series.
- Asynchronous motor.
- Not suitable for ventilating steam-saturated air.
- Rated voltage 230 V, 50 Hz.
- Fans “... B”: Capacitor motors with operating capacitor fitted to protective grille or to wall sleeve, IP 55 degree of protection.
- Fans “... D”: Capacitor motors with operating capacitor in terminal box, IP 54 degree of protection.
- Fans “... E”: Shaded-pole motors, degree of protection IP 54.
- Speed-controllable. Exception for type EZQ 45/6 B.
- Units can be steplessly controlled with optional speed controllers or they can be steplessly switched with an optional 5-step transformer.
- Reversible. Exception for fans with shaded-pole motor (“... E”).
- Reversing mode: The volumetric flow is reduced by approx. 35 % with abnormal air flow direction.
- Thermal overload protection as a standard feature.
Electrical connection
- On terminal block in end cover of the motor.
Safety information
- The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857, e.g., with Maico SG protective grille.
Special versions
- The following special versions are available on request, at an extra cost:
- Special voltages and frequencies.
- Single-phase motors with thermal contacts or PTC thermistor, potential-free terminal connection.
- Condensation drainage holes.
- Fans with enhanced anti-corrosion protection.
- Impellers made of aluminium.
- Information on operation at temperatures occasionally below -20°C available upon request.
- If operating with frequency converters, the factory must be consulted.
- Feasibility must be checked in each case.
Wiring diagram

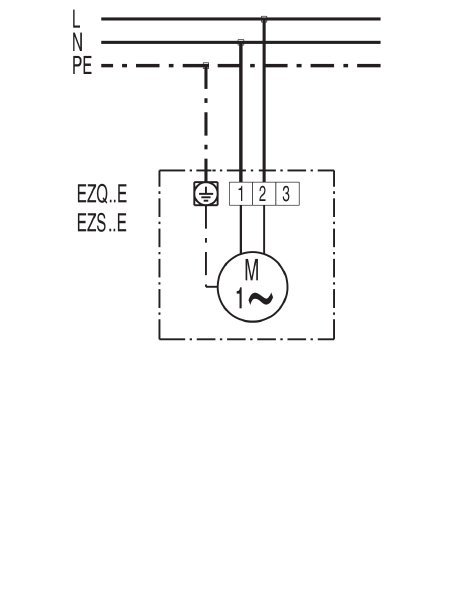

EZQ 20/4 E - Wiring diagram
