Axial duct fan

EZR 30/6 B

Article number: 0086.0003
Manufacturer: MAICO
Axial duct fan, DN 300, alternating current
Application examples: Machine extraction unit, Showroom, Foreman's office, Workshop, Production site
Product data sheet
EZR 30/6 B IM0009987.PNG Axial duct fan, DN 300, alternating current

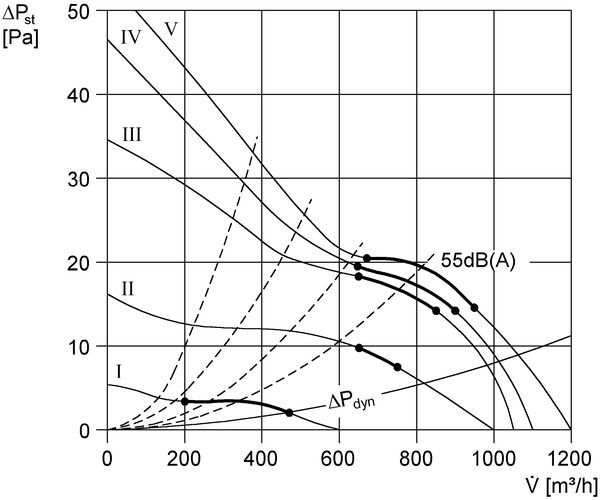

Characteristic curve

EZR 30/6 B - Characteristic curve

Dimensioned drawing

EZR 30/6 B - Dimensioned drawing [mm]

Number of flange holes: 8

Technical data

EZR 30/6 B - Technical data

Article EZR 30/6 B
Air flow volume 1.200 m³/h
Rotating speed 930 1/min
Impeller type axial
Speed controllable
Reversing capacity
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz
Nominal output 59 W
Inom 0,3 A
Imax 0,32 A
Degree of protection IP 55
Insulation class B
Pole-changeable
Installation position horizontal / vertical
Material Sheet steel, galvanised
Colour Silver
Weight 8,43 kg
Weight including packaging 9,24 kg
Nominal size 300 mm
Width 380 mm
Height 424 mm
Depth 300 mm
Width with packaging 420 mm
Height with packaging 430 mm
Depth with packaging 330 mm
Airstream temperature at nominal current 60 °C
Airstream temperature at IMax -20 °C up to 60 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799860037
Article number 0086.0003



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA2, S1 (dB(A))

15

27

22

18

21

13

17

15

30

LWA2, S2 (dB(A))

14

38

36

31

34

30

25

23

42

LWA2, S3 (dB(A))

16

39

36

36

38

35

29

25

44

LWA2, S4 (dB(A))

18

38

37

42

39

36

30

25

46

LWA2, S5 (dB(A))

18

42

38

43

40

37

31

25

48

LWA5, S1 (dB(A))

20

31

37

30

28

25

19

15

39

LWA5, S2 (dB(A))

20

40

53

44

44

45

35

24

54

LWA5, S3 (dB(A))

21

39

49

55

47

48

40

27

57

LWA5, S4 (dB(A))

21

40

50

56

48

49

41

28

58

LWA5, S5 (dB(A))

22

46

50

56

48

50

42

28

59

LWA6, S1 (dB(A))

24

29

31

35

32

29

18

14

39

LWA6, S2 (dB(A))

26

45

48

50

48

48

36

25

55

LWA6, S3 (dB(A))

28

45

47

55

53

53

51

48

60

LWA6, S4 (dB(A))

27

45

47

47

57

53

48

43

61

LWA6, S5 (dB(A))

27

46

48

58

53

54

46

36

61

LWA2= housing sound power level in dB.

LWA5= free inlet sound power level in dB.

LWA6= free outlet sound power level in dB.

Accessories

EZR 30/6 B - Accessories

General accessories

Product type Name Art. No. Price*(EUR) Action
Shutter AS 30 0151.0332 on request
  • On the notes
Shutter, manual RS 30 0151.0340 on request
  • On the notes
Servomotor MS 2 0093.0403 on request
  • On the notes
Control shutter JRE 30 0151.0391 on request
  • On the notes
Servomotor MS 8 0157.0760 on request
  • On the notes
Servomotor MS 8 P 0157.0761 on request
  • On the notes
Internal grille IG 30 0059.0173 on request
  • On the notes
Protective grille, metal SG 30 0150.0116 on request
  • On the notes
Protective grille, synthetic material SGK 30 0059.0163 on request
  • On the notes
Flexible coupling ELA 30 0092.0267 on request
  • On the notes
Flexible cuff EL 30 0092.0089 on request
  • On the notes
Counter flange GF 30 0056.0004 on request
  • On the notes
Counter socket GS 30 0055.0170 on request
  • On the notes
Suction nozzle AD 30 0180.0621 on request
  • On the notes
Mounting foot FU 30 0036.0071 on request
  • On the notes
Vibration damper GP 10 0092.0151 on request
  • On the notes
Main switch, service switch HS 3 0157.0736 on request
  • On the notes
Rotary switch DS 10 0157.0410 on request
  • On the notes
Reversing switch W 1 0157.0101 on request
  • On the notes
Reversing switch WU 1 Discontinued product 0157.0102 on request
  • On the notes
Step switch FS 4 0016.0104 on request
  • On the notes
Step switch, reversing switch FS 6 0016.0106 on request
  • On the notes
Reversing switch FS 7 0016.0107 on request
  • On the notes
Contactor US 16 T 0157.0769 on request
  • On the notes
Speed controller STX 1,5 0157.1561 on request
  • On the notes
Speed controller, distribution board STSX 2,5 0157.1564 on request
  • On the notes
Reversing switch UWK 1 Discontinued product 0157.0817 on request
  • On the notes
5-step transformer TRE 0,4-2 0157.0156 on request
  • On the notes
5-step transformer, control cabinet TRE 1,6 S-2 0157.0162 on request
  • On the notes
5-step switch for TRE...S -2/ TR...S-2 5-step transformers ESS 20 0157.0749 on request
  • On the notes
Thermostat THR 10-1 0157.0191 on request
  • On the notes
Thermostat TH 10 0157.0764 on request
  • On the notes
Thermostat TH 16 0157.0748 on request
  • On the notes
Temperature control system EAT 6 TG Discontinued product 0157.0755 on request
  • On the notes
Air flow monitor LW 9 0157.0779 on request
  • On the notes
Hygrostat HY 230 0157.0126 on request
  • On the notes
Hygrostat HY 230 I 0157.0127 on request
  • On the notes
Air quality controller EAQ 10/1 Discontinued product 0157.0777 on request
  • On the notes
Speed controller, reversing switch STW 1 No longer available for delivery 0157.0813 on request
  • On the notes
Thermostat THR 10 No longer available for delivery 0157.0774 on request
  • On the notes
Thermostat THD 10 No longer available for delivery 0157.0775 on request
  • On the notes
Temperature control system EAT 6 G/1 No longer available for delivery 0157.0808 on request
  • On the notes
Mounting and sealing material BD 30 No longer available for delivery 0092.0134 on request
  • On the notes
Speed controller ST 1 No longer available for delivery 0157.0810 on request
  • On the notes
Speed controller STU 1 No longer available for delivery 0157.0814 on request
  • On the notes
Speed controller, distribution board STS 2,5 No longer available for delivery 0157.0255 on request
  • On the notes
Temperature control system, power module EALT 6 No longer available for delivery 0157.0756 on request
  • On the notes
Hygrostat HY 10 AP No longer available for delivery 0157.0358 on request
  • On the notes
Hygrostat HY 10 UP No longer available for delivery 0157.0357 on request
  • On the notes

Product description

Productdescription

EZR 30/6 B

short description

Axial duct fan, DN 300, alternating current

Product description

AC model

  • Axial duct fan, in single-phase AC version.

Brief description

  • Duct sleeve made of galvanised sheet steel, with flanges on both sides.
  • 8-blade impellers made of glass fibre reinforced polyamide
  • Flange holes in accordance with DIN EN 12220:1998.
  • DZR 56/6 B and DZR 56/4 B: Flange holes in accordance with DIN EN 12220: 1998.
  • To avoid transmission of vibrations to the duct system: Use flexible couplings, feet and vibration dampers.
  • Thermal overload protection as a standard feature.
  • Fans meet the requirements of the European Ecodesign Directive (EC) No.327/2011 Directive 2009/125/EC.
  • Vibration-free running due to dynamically balanced impeller and motor (shaft-rotor), according to quality class 6.3, DIN ISO 1940, part 1.
  • High efficiency on the ventilation side, low operating noise.
  • Increased durability due to high-quality materials such as quiet ball bearings.
  • Fans are maintenance-free.
  • Can be fitted in any position.

Air flow direction

  • The air flow direction is marked.
  • Standard exhaust air mode, air flow direction with air drawn across motor.

AC motor

  • EZR type series.
  • Asynchronous motor.
  • Not suitable for ventilating steam-saturated air.
  • Rated voltage 230 V, 50 Hz.
  • High degree of protection IP 55. Exception EZR... D IP 54.
  • Speed-controllable.
  • Units can be steplessly controlled with optional speed controllers or they can be steplessly switched with an optional 5-step transformer.
  • Reversible.
  • Reversing mode: The volumetric flow is reduced by approx. 35 % with abnormal air flow direction.
  • Capacitor motors with operating capacitor ready for use in terminal box.
  • Thermal overload protection as a standard feature.
  • Potential-free terminal connections, which must be connected to, e.g., an MVE 10-1 full motor protection switch (not suitable for EZR 25/4 D, EZR 30/6 B and EZR 35/6 B) or the control circuit of a contactor.

Electrical connection

  • Terminal box with cable sleeves fitted on the outside.

Safety information

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857, e.g., with Maico SG protective grille.

Special versions

  • The following special versions are available on request, at an extra cost:
    • Special voltages and frequencies.
    • PTC thermistor, potential-free terminal connection.
    • Condensation drainage holes.
    • Fans with enhanced anti-corrosion protection.
    • Impellers made of aluminium.
  • Information on operation at temperatures occasionally below -20°C available upon request.
  • If operating with frequency converters, the factory must be consulted.
  • Feasibility must be checked in each case.

Table of contents

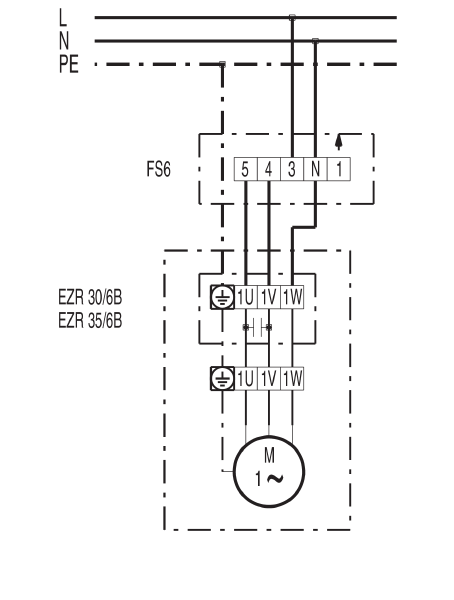

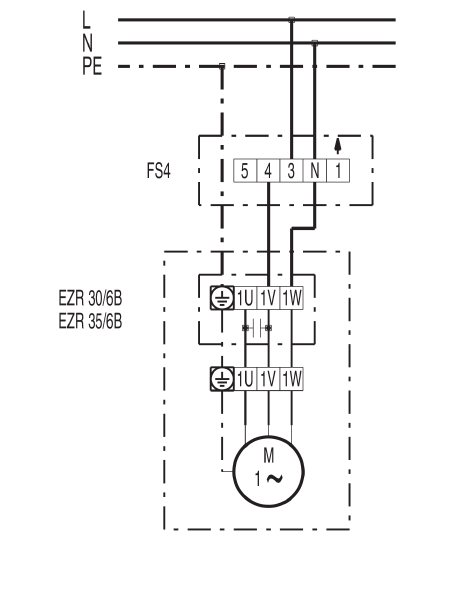

Wiring diagram

EZR 30/6 B - Wiring diagram

With TRE... 5-step transformer.


With STX / STSX speed controller and MVE 10-1 motor protection switch

MVE 10-1 not for EZR 25/4 D, EZR 30/6 B and EZR 35/6 B



With contactor circuit (self-switching)
