Diagonal fan

HDR 15

Discontinued product
Article number: 0080.0538
Manufacturer: MAICO
Diagonal fan for duct installation, DN 150, motor with AC technology, three levels
Application examples: Production site, Storage facility, Day room, Showroom, Workshop
Product data sheet
HDR 15 IM0017273.PNG Diagonal fan for duct installation, DN 150, motor with AC technology, three levels
Back
  • On the notes
HDR 10
HDR 12
HDR 15
HDR 16

Characteristic curve

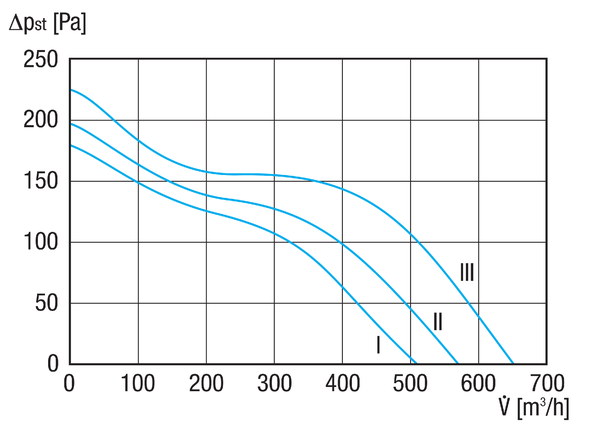

HDR 15 - Characteristic curve

Dimensioned drawing

HDR 15 - Dimensioned drawing [mm]

Technical data

HDR 15 - Technical data

Article HDR 15
Air flow volume 655 m³/h
Rotating speed 2.834 1/min
Impeller type diagonal
Speed controllable ✔
Reversing capacity −
Type of voltage Alternating current
Rated voltage 230 V
Frequency 50 Hz
Nominal output 52,2 W / in opt. efficiency
Inom 0,21 A / in opt. efficiency
Imax 0,23 A
Degree of protection IP 44
Insulation class B
Installation position vertical / horizontal
Material PP plastic
Housing material Polypropylene
Colour grey
Weight 2,76 kg
Weight including packaging 3,31 kg
Nominal size 150 mm
Width 235 mm
Height 244,5 mm
Depth 295 mm
Width with packaging 255 mm
Height with packaging 245 mm
Depth with packaging 310 mm
Airstream temperature at IMax 50 °C
Packing unit 1 piece
Range C
GTIN (EAN) 4012799805380
Article number 0080.0538



63 Hz

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

Total

LWA5, high (dB)

24,7

38,1

54,6

58,7

59,6

62,3

58,5

49,8

65,9

LWA5= free inlet sound power level in dB.

Accessories

HDR 15 - Accessories

General accessories

Product type Name Art. No. Price*(EUR) Action
Automatic backflow preventer AVM 15 0093.0004 on request
  • On the notes
Fixing cuff ELR 15 0092.0578 on request
  • On the notes
Tubular sound absorber RSR 15 Remaining parts 0092.0313 on request
  • On the notes
Tubular sound absorber RSR 15/50 Remaining parts 0092.0323 on request
  • On the notes
Tubular sound absorber RSR 15-1 0092.0594 on request
  • On the notes
Tubular sound absorber RSR 15/50-1 0092.0602 on request
  • On the notes
Air filter TFE 15-4 0149.0076 on request
  • On the notes
Air filter TFE 15-7 0149.0051 on request
  • On the notes
3-step switch DS 3N 0157.0186 on request
  • On the notes
Cellar dehumidification control AKE 0157.0129 on request
  • On the notes
Speed controller STX 1,5 0157.1561 on request
  • On the notes
Speed controller, distribution board STSX 2,5 0157.1564 on request
  • On the notes
5-step transformer TRE 0,4-2 0157.0156 on request
  • On the notes
Cellar dehumidification control AKE/1 New development 0157.1683 on request
  • On the notes
Air filter TFE 15-5 No longer available for delivery 0149.0060 on request
  • On the notes
Speed controller ST 1 No longer available for delivery 0157.0810 on request
  • On the notes
Speed controller STU 1 No longer available for delivery 0157.0814 on request
  • On the notes
Speed controller, distribution board STS 2,5 No longer available for delivery 0157.0255 on request
  • On the notes

Product description

Productdescription

HDR 15

short description

Diagonal fan for duct installation, DN 150, motor with AC technology, three levels

Product description

Special features

  • Highly efficient duct fan, made of high-quality plastic (PP).
  • Suitable for industrial and residential installations.
  • With integrated mounting bracket for quick and easy fan mounting.
  • Powerful diagonal impeller with downstream stator for high output.
  • Modular design with optimised flow technology and acoustics results in very quiet operation.
  • Reduced space requirement due to compact dimensions.
  • For direct installation between ducts, for ventilation or air extraction, depending on the installation position.
  • Connection sockets on the outlet and inlet sides correspond to the prevailing standard duct diameters.
  • Quick and easy inspection and maintenance of the fan by opening the clamps.
  • IP 44 degree of protection.

AC motor

  • Speed controllable with 3 stages, option of controlling speed using phase angle or transformer.
  • Thermal overload protection as a standard feature.
  • Electrical connection via terminal box integrated in the housing
  • Robust motor with humidity protection and ball bearing, maintenance-free.
  • Thermal class 130 (B).

Mounting instructions

  • Can be fitted in any position.

Electrical connection

  • Externally fitted terminal box with cable entry grommet.

Safety information

  • The fan may be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN ISO 13857 for fans with free inlet or free outlet. To do this, fit an optional SGR protective grille.

Table of contents

Wiring diagram

HDR 15 - Wiring diagram

1 = low level

2 = high level

3 = highest level



Predecessor - successor

HDR 15 - Predecessor

Product type Name Art. No. Action
Semi-centrifugal duct fan ERM 15 No longer available for delivery 0080.0203
  • On the notes
