Tubular sound absorber

RSR 16-1

Article number: 0092.0595
Manufacturer: MAICO
Flexible tubular sound absorber with lip seal, 25 mm sound absorbing cover, length 1000 mm, DN 160
Application examples: Showroom, Restaurant, Theatre, Production site, Industrial building
Product data sheet
RSR 16-1 IM0021549.PNG Flexible tubular sound absorber with lip seal, 25 mm sound absorbing cover, length 1000 mm, DN 160

Characteristic curve

RSR 16-1 - Characteristic curve

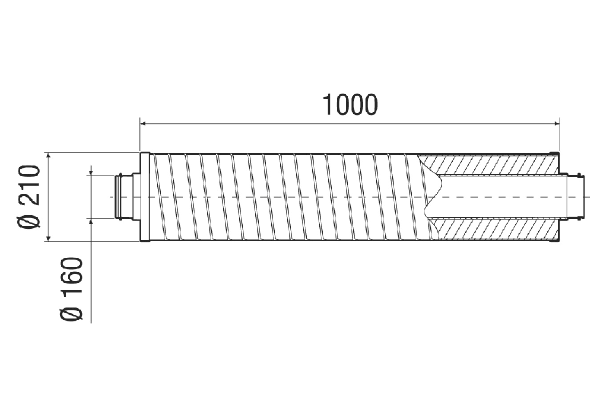

Dimensioned drawing

RSR 16-1 - Dimensioned drawing [mm]

Technical data

RSR 16-1 - Technical data

Article RSR 16-1
Model 25 mm sound absorbing cover
Installation site Fans
Material Aluminium
Colour Silver
Weight 1,3 kg
Weight including packaging 1,79 kg
Connection diameter 160 mm
Suitable for nominal size 160 mm
Width 210 mm
Height 210 mm
Depth 1.000 mm
Width with packaging 215 mm
Height with packaging 215 mm
Depth with packaging 1.175 mm
Insertion loss at 63 Hz 1 dB
Insertion loss at 125 Hz 2 dB
Insertion loss at 250 Hz 4 dB
Insertion loss at 500 Hz 8 dB
Insertion loss at 1 kHz 24 dB
Insertion loss at 2 kHz 44 dB
Insertion loss at 4 kHz 18 dB
Insertion loss at 8 kHz 16 dB
Sound insulation yes
Packing unit 1 piece
Range C
GTIN (EAN) 4012799925958
Article number 0092.0595

Accessories of

RSR 16-1 - Accessories of

is a special accessory of

Product type Name Art. No. Price*(EUR) Action
Aeronom room air system WRG300 No longer available for delivery 0082.0037 on request
  • On the notes
Sound-insulated ventilation box ESR 16 S No longer available for delivery 0080.0228 on request
  • On the notes

is a general accessory of

Product type Name Art. No. Price*(EUR) Action
Centralised ventilation unit WS 160 Flat ET 0095.0090 on request
  • On the notes
Centralised ventilation unit WS 160 Flat BET 0095.0092 on request
  • On the notes
Centralised ventilation unit WS 160 Flat KET 0095.0091 on request
  • On the notes
Centralised ventilation unit WS 160 Flat KBET 0095.0093 on request
  • On the notes
Centralised ventilation unit WS 160 Flat KBZET 0095.0094 on request
  • On the notes
Centralised ventilation unit WS 300 Flat R 0095.0140 on request
  • On the notes
Centralised ventilation unit WS 300 Flat L 0095.0141 on request
  • On the notes
Centralised ventilation unit WS 300 Flat BR 0095.0142 on request
  • On the notes
Centralised ventilation unit WS 300 Flat BL 0095.0143 on request
  • On the notes
Centralised ventilation unit WS 300 Flat KBR 0095.0144 on request
  • On the notes
Centralised ventilation unit WS 300 Flat KBL 0095.0145 on request
  • On the notes
Centralised ventilation unit WS 320 B 0095.0221 on request
  • On the notes
Centralised ventilation unit WS 320 BR 0095.0262 on request
  • On the notes
Centralised ventilation unit WS 320 K 0095.0222 on request
  • On the notes
Centralised ventilation unit WS 320 KR 0095.0263 on request
  • On the notes
Centralised ventilation unit WS 320 KB 0095.0223 on request
  • On the notes
Centralised ventilation unit WS 320 KBR 0095.0264 on request
  • On the notes
Centralised ventilation unit WS 320 ET 0095.0224 on request
  • On the notes
Centralised ventilation unit WS 320 RET 0095.0265 on request
  • On the notes
Centralised ventilation unit WS 320 BET 0095.0225 on request
  • On the notes
Centralised ventilation unit WS 320 BRET 0095.0266 on request
  • On the notes
Centralised ventilation unit WS 320 KET 0095.0226 on request
  • On the notes
Centralised ventilation unit WS 320 KRET 0095.0267 on request
  • On the notes
Centralised ventilation unit WS 320 KBET 0095.0227 on request
  • On the notes
Centralised ventilation unit WS 320 KBRET 0095.0268 on request
  • On the notes
Centralised ventilation unit WS 470 B 0095.0229 on request
  • On the notes
Centralised ventilation unit WS 470 BR 0095.0269 on request
  • On the notes
Centralised ventilation unit WS 470 K 0095.0230 on request
  • On the notes
Centralised ventilation unit WS 470 KR 0095.0270 on request
  • On the notes
Centralised ventilation unit WS 470 KB 0095.0231 on request
  • On the notes
Centralised ventilation unit WS 470 KBR 0095.0271 on request
  • On the notes
Centralised ventilation unit WS 470 ET 0095.0232 on request
  • On the notes
Centralised ventilation unit WS 470 RET 0095.0272 on request
  • On the notes
Centralised ventilation unit WS 470 BET 0095.0233 on request
  • On the notes
Centralised ventilation unit WS 470 BRET 0095.0273 on request
  • On the notes
Centralised ventilation unit WS 470 KET 0095.0234 on request
  • On the notes
Centralised ventilation unit WS 470 KRET 0095.0274 on request
  • On the notes
Centralised ventilation unit WS 470 KBET 0095.0235 on request
  • On the notes
Centralised ventilation unit WS 470 KBRET 0095.0275 on request
  • On the notes
Centralised ventilation unit WR 310 0095.0220 on request
  • On the notes
Centralised ventilation unit WR 310 R 0095.0260 on request
  • On the notes
Centralised ventilation unit WR 410 0095.0228 on request
  • On the notes
Centralised ventilation unit WR 410 R 0095.0261 on request
  • On the notes
Centrifugal duct fan RAS 16 Remaining parts 0080.0603 on request
  • On the notes
Centrifugal duct fan ERR 16/1 0080.0273 on request
  • On the notes
Centrifugal duct fan ERR 16/1 S 0080.0274 on request
  • On the notes
Centrifugal duct fan ERR 16/1 EC Discontinued product 0073.0569 on request
  • On the notes
Centrifugal duct fan ERR 16/2 EC New development 0073.0586 on request
  • On the notes
Centrifugal external wall fan AWV 16 EC Discontinued product 0073.0576 on request
  • On the notes
Centrifugal external wall fan AWV 16/2 EC New development 0073.0598 on request
  • On the notes
Sound-insulated ventilation box ESR 16-3 EC New development 0080.1001 on request
  • On the notes
Compact box ECR 16-2 EC 0080.0775 on request
  • On the notes
Diagonal fan HDR 16 Discontinued product 0080.0539 on request
  • On the notes
Diagonal fan HDR 16 EC Discontinued product 0080.0543 on request
  • On the notes
Sound-insulated ventilation box ESR 16 EC No longer available for delivery 0080.0085 on request
  • On the notes
Centralised ventilation unit WS 250 No longer available for delivery 0095.0050 on request
  • On the notes
Centralised ventilation unit WR 300 No longer available for delivery 0095.0078 on request
  • On the notes
Centralised ventilation unit WR 400 No longer available for delivery 0095.0079 on request
  • On the notes
Aeronom room air system WRG 300 EC No longer available for delivery 0082.0060 on request
  • On the notes
Centralised ventilation unit WRG 300 EC No longer available for delivery 0082.0062 on request
  • On the notes
Centrifugal duct fan ERR 16/1 N No longer available for delivery 0080.0867 on request
  • On the notes
Sound-insulated ventilation box ESR 16/1 No longer available for delivery 0080.0282 on request
  • On the notes
Sound-insulated ventilation box ESR 16-2 No longer available for delivery 0080.0611 on request
  • On the notes
Sound-insulated ventilation box ESR 16-2 No longer available for delivery 0080.0057 on request
  • On the notes
Sound-insulated ventilation box ESR 16-2 S No longer available for delivery 0080.0618 on request
  • On the notes
Compact box ECR 16 No longer available for delivery 0080.0561 on request
  • On the notes
Sound-insulated ventilation box ECR-A 16 No longer available for delivery 0080.0566 on request
  • On the notes
Sound-insulated ventilation box ESR 16-2 EC No longer available for delivery 0080.0711 on request
  • On the notes
Compact box ECR 16 EC No longer available for delivery 0080.0575 on request
  • On the notes

Product description

Productdescription

RSR 16-1

short description

Flexible tubular sound absorber with lip seal, 25 mm sound absorbing cover, length 1000 mm, DN 160

Product description

  • Tubular sound absorber for ventilation systems.
  • With sound absorbing packing made of synthetic resin-bonded glass fibres.
  • Non-combustible in accordance with DIN 4102 class A1 (building material classification).
  • Insertion loss measured in accordance with DIN 45646.
  • With lip seal.
  • Temperature resistant up to +70 °C.
  • RSR...: With 25 mm thick sound absorbing packing.
  • RSR.../50: With 50 mm thick sound absorbing packing.

Table of contents

Wiring diagram

RSR 16-1 - Wiring diagram

Predecessor - successor

RSR 16-1 - Predecessor

Product type Name Art. No. Action
Tubular sound absorber RSR 16 No longer available for delivery 0092.0314
